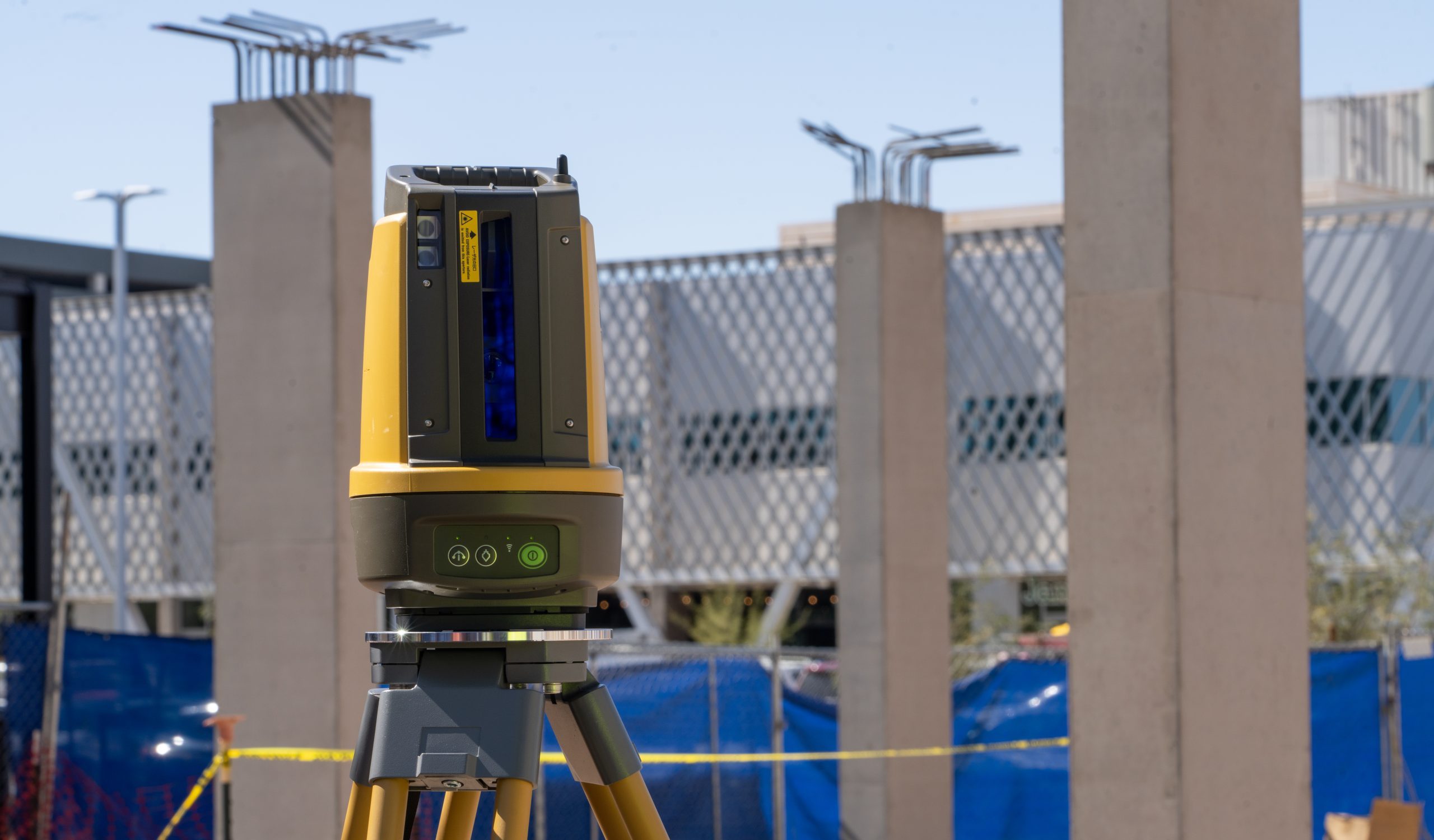

Topcon LN-160 3D Layout Navigator

The Topcon LN-160 3D Layout Navigator is a game-changing positioning tool designed to bridge the gap between traditional tape measures and complex surveying equipment. Built on over 80 years of Topcon optical innovation, the LN-160 delivers the precision of a professional robotic total station through an interface so intuitive that no prior surveying experience is required.

This system takes you from paper plans to a fully digital workflow. By pairing the LN-160 with a rugged Topcon tablet, you can access 3D designs and CAD/PDF drawings directly on-site. The instrument remains locked firmly on the prism, providing real-time positioning as you move. Whether you are laying out points for building interiors, mechanical/electrical/plumbing (MEP), or foundations, the LN-160 guides you exactly where you need to be—eliminating guesswork and the costly re-work associated with manual measurement errors.

Engineered for the modern contractor, it features a glass prism on a lightweight pole combined with long-range Bluetooth and WiFi communication. It is the ultimate solution for crews looking to increase productivity, maintain consistent accuracy, and maximize their bottom-line cost savings.

Key Features

• One-button self-leveling allows for rapid, error-free setup on any job site.
• High-performance 130-meter (426 ft) working radius minimizes instrument resets and maximizes daily productivity.
• Single-operator solution uses advanced robotic tracking to follow a prism for real-time 3D positioning on the go.
• Expanded vertical grade range of +55° to -32° ensures superior performance for steep
  layouts and multi-story decking.
• Digital workflow integration provides seamless connection to Topcon Digital Layout software, MAGNET, and popular CAD platforms.
• Rugged, water-resistant, and dust proof housing is specifically engineered to withstand harsh construction environments.
• Precise 3D guidance supports compact machine control solutions including excavators and track loaders.

Why Upgrade to the LN-160?

The LN-160 is the high-performance evolution of the Layout Navigator series. While the LN-150 is ideal for general tasks, the LN-160 offers enhanced tracking stability, increased 3D accuracy, and a broader working range. It is specifically engineered for larger crews and high-interference environments where workflow efficiency and precision are critical.

Technical Specifications

• Working Range: 0.9m to 130m (426 ft).
• Communication: LongLink Bluetooth® and Wireless LAN options.
• Power Management: Includes 2x BDC72 batteries and a CDC77 charger, plus a new external power port for continuous, uninterrupted operation.
• Mounting Versatility: Can be used on the ground, on decking, or mounted to a tripod or column clamp.
• Durability: Completely sealed, waterproof, and dustproof housing designed for active job sites.

Ideal Applications

• Building Construction: BIM-based layout, structural steel, and interior framing.
• Concrete & Foundations: Precise placement of anchor bolts, formwork, and footings.
• MEP & HVAC: Efficient installation of hangers, pipe runs, and complex ductwork.
• Civil & Earthworks: Trenching, grading, and compact machine control.
• As-Built Capture: Fast and accurate record-keeping to identify changes from original plans and ensure quality control.
