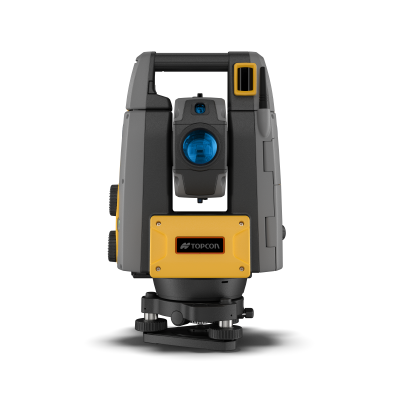

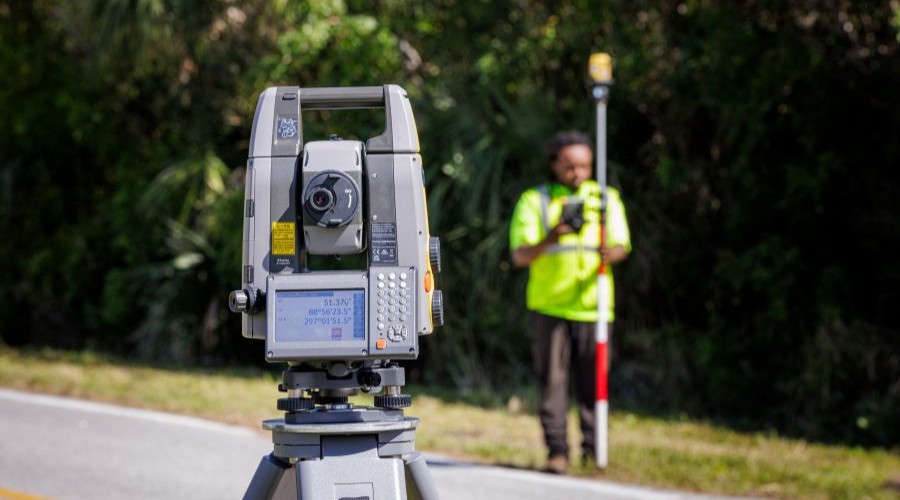

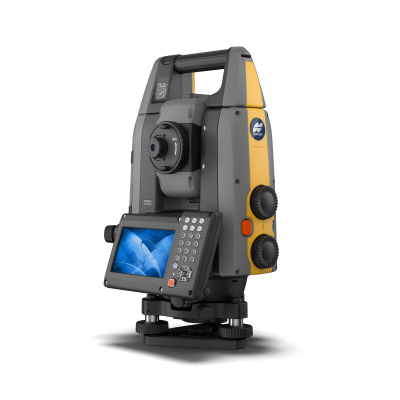

Topcon GT-1503 Robotic Total Station

The Topcon GT-1503 Robotic Total Station gives you the full GT-1500 platform, 200-degree-per-second BLDC motors, 5,000-meter prism range, and 1 mm distance accuracy, at a 3-second angular accuracy tier. That makes it the right instrument for crews who need long-range capability and fast setup but do not require survey-grade angular precision. Construction monitoring, highway alignment, and large-site layout all benefit from the fastest motors in the line without paying for accuracy they will not use.

Key Features

• Brushless Direct Current Motors: 200-degree-per-second rotation and 20-degree-per-second auto tracking. The fastest turning speed in the GT series. BLDC motors outlast traditional servo designs and run quieter.
• 3-Second Angular Accuracy: The right accuracy tier for construction monitoring, long-range layout, and general surveying where speed and range are more critical than sub-second precision.
• 5,000-Meter Prism Range: The longest range in the GT line. Built for long-shot work on highway alignments, large commercial sites, and extended control networks.
• 1,000-Meter Reflectorless EDM: Measure targets without a prism at extended range. Ideal for as-built verification, facade work, and hard-to-reach points.
• 1 mm Fine Distance Accuracy: Same distance precision as the GT-1501 and GT-1502. You do not give up distance accuracy with the 1503.
• UltraTrac Prism Tracking: Rock-solid prism lock at ranges up to 1,000 meters, even in high-vibration environments.
• Hybrid Positioning Ready: Pair with a Topcon GNSS receiver for seamless switching between robotic and GNSS measurement, no workflow change required.
• RC-5A Remote Compatibility: Reacquire your prism in seconds with single-tap acquisition from up to 300 meters.
• Rugged IP65 Rating: Fully dust- and waterproof. Operates in temperatures from -20°C to 50°C.

Why Choose the GT-1503 Over the GT-703

Both the GT-1503 and the GT-703 have 3-second angular accuracy, but they sit on different platforms. The GT-1503 runs at 200 degrees per second (versus 120 on the GT-703), reaches 5,000 meters to a prism (versus 4,500), and measures distance at 1 mm fine accuracy (versus 2 mm). If your work is long-range, time-sensitive, or benefits from the fastest setup and reset cycles, the 1503 is the right call. If you are doing shorter-range layout at a value price point, the 703 handles it. Both run the same Topcon software and accept the same accessories.

Technical Specifications

• Angular Accuracy: 3" (0.0010 gon / 0.015 mil)
• Angle Display: 1" / 5" selectable
• Prism Range: 1.3 to 5,000 m (16,400 ft)
• Reflectorless Range: 0.3 to 1,000 m (3,280 ft)
• Distance Accuracy (Fine): 1 mm + 2 ppm
• Measuring Time: Fine 0.9s / Rapid 0.6s / Tracking 0.4s
• Max Rotation Speed: 200°/sec
• Max Auto Tracking Speed: 20°/sec
• UltraTrac Tracking Range: 1.3 to 1,000 m
• Motor Type: Brushless Direct Current (BLDC)
• Operating System: Windows Embedded Compact 7
• Display: 4.3" TFT VWGA color touchscreen
• Communications: Bluetooth Class 1 (600 m with RC-5A), USB 2.0, RS-232C
• Battery Life: Approximately 4 hours per BDC72 battery
• Environmental: IP65 dust and water resistant, -20°C to 50°C operating temperature
• Weight: 5.9 kg (normal handle) / 6.0 kg (RC handle)

Standard Kit Includes:

• GT-1503 Total Station
• 2x BDC72 rechargeable lithium-ion batteries
• CDC77 dual battery charger
• Rugged hard carrying case
• Lens cap and tool kit
• Calibration certificate

Industry-Leading Warranty:

• 3-Year Instrument Warranty
• 5-Year UltraSonic Motor Warranty

Common Questions About the GT-1503

What is the angular accuracy of the Topcon GT-1503?
The GT-1503 has 3-second (3") angular accuracy. At 100 feet, that translates to less than 1/16 inch of horizontal offset, appropriate for construction layout, monitoring, and general surveying.

What is the difference between the GT-1503 and the GT-703?
Both have 3-second angular accuracy, but they use different platforms. The GT-1503 runs at 200°/sec with 5,000 m prism range and 1 mm fine distance accuracy. The GT-703 runs at 120°/sec with 4,500 m prism range and 2 mm fine distance accuracy. Choose the 1503 when speed and range matter. Choose the 703 when you want the same accuracy class at a lower price point.

What is the prism range of the GT-1503?
The GT-1503 measures to a single prism from 1.3 to 5,000 meters (16,400 feet) and to a reflectorless target from 0.3 to 1,000 meters (3,280 feet).

Can the GT-1503 be used for surveying?
Yes. Three-second angular accuracy handles boundary surveys, topographic mapping, and site control. For high-order control surveys or precision monitoring, step up to the GT-1502 (2") or GT-1501 (1").

Not sure the GT-1503 is the right instrument for your work? That happens often. Send us your project details and we will point you to the right tool, even if it is not this one.
