Mechasys XR Projector vs. Hilti Layout Solutions

As commercial construction sites move toward fully digital workflows, trade contractors are upgrading from manual tape measures to digital layout equipment. Two prominent technologies on the market are Hilti layout tools and the Mechasys XR Projector.

Hilti manufactures line lasers (like the PM 30-MG) and robotic total stations (like the PLT-300/400). These systems assist in locating specific points on a slab, but they still require a multi-step physical layout process. Field crews must move a prism pole, mark individual points with markers or stickers, and snap chalk lines across the floor.

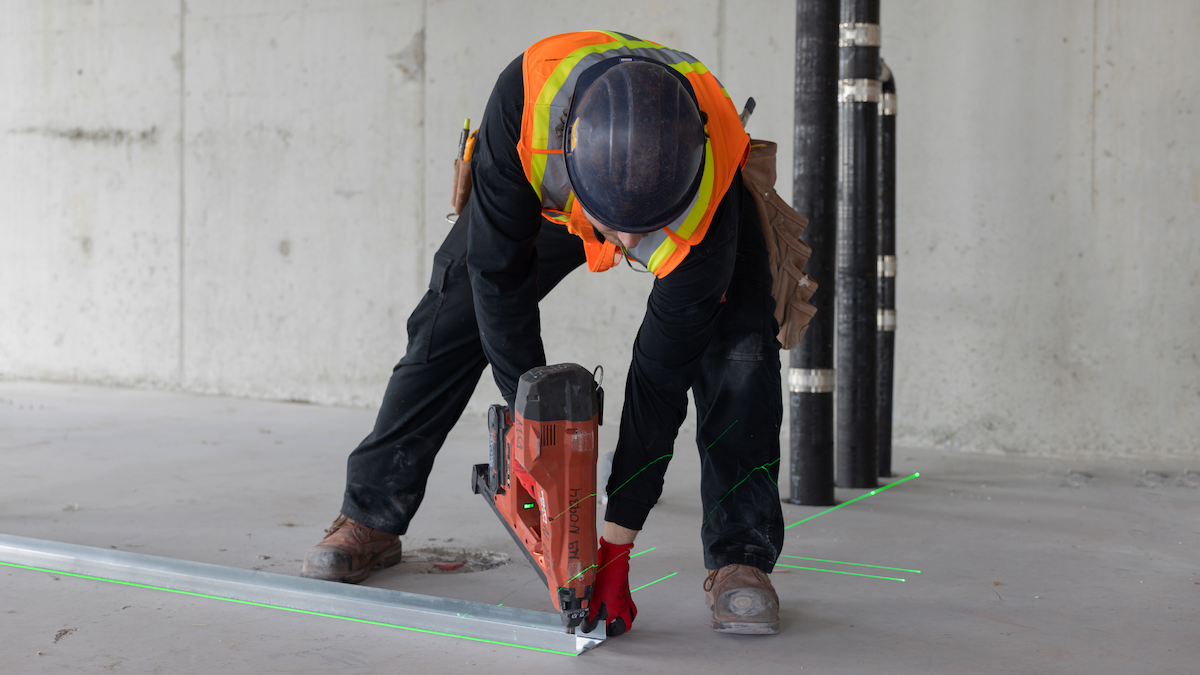

The Mechasys XR Projector represents a fundamental shift in field technology. Instead of guiding a worker to individual coordinates, the system projects full vectorfiles, including wall tracks, arcs, door swings, text labels, and hanger points, directly onto the jobsite surface. Trade crews can either install track and fixtures directly onto the green laser lines in real time or mark the layout right on top of the projection.

To explore how visual projection integrates into modern field operations, visit our laser projection layout solutions page.

CAD Projection vs. Point Shooting

The primary difference between these systems comes down to how field teams interact with design data:

• Hilti Point-Shooting Workflow: The operator uploads coordinate points to a tablet controller. Moving across the slab, the operator carries a prism pole or target rod until the system aligns with a target point. The operator marks the floor, snaps a chalk line between points, and repeats the procedure for every wall segment.
• Mechasys XR Projection Workflow: The operator imports standard 2D or 3D CAD and BIM files (such as DWG or DXF formats) onto the system tablet. The projector aligns to site reference points and casts the full design directly onto the floor, ceiling, or wall at 1:1 scale.

Because the projection serves as the actual work line, trades do not need to snap chalk lines or place floor stickers. This non-contact workflow keeps finished decks and delicate architectural surfaces completely clean.

Layout Speed and Crew Efficiency

Field productivity relies on keeping installation crews moving without layout bottlenecks.

With traditional point-shooting tools like the Hilti PLT 300, layout speed is constrained by physical movement. A single technician navigating obstacles on an active jobsite might mark 100-200 points per day. Afterward, framing and MEP crews must wait for chalk lines to be snapped before placing tracks or hangers.

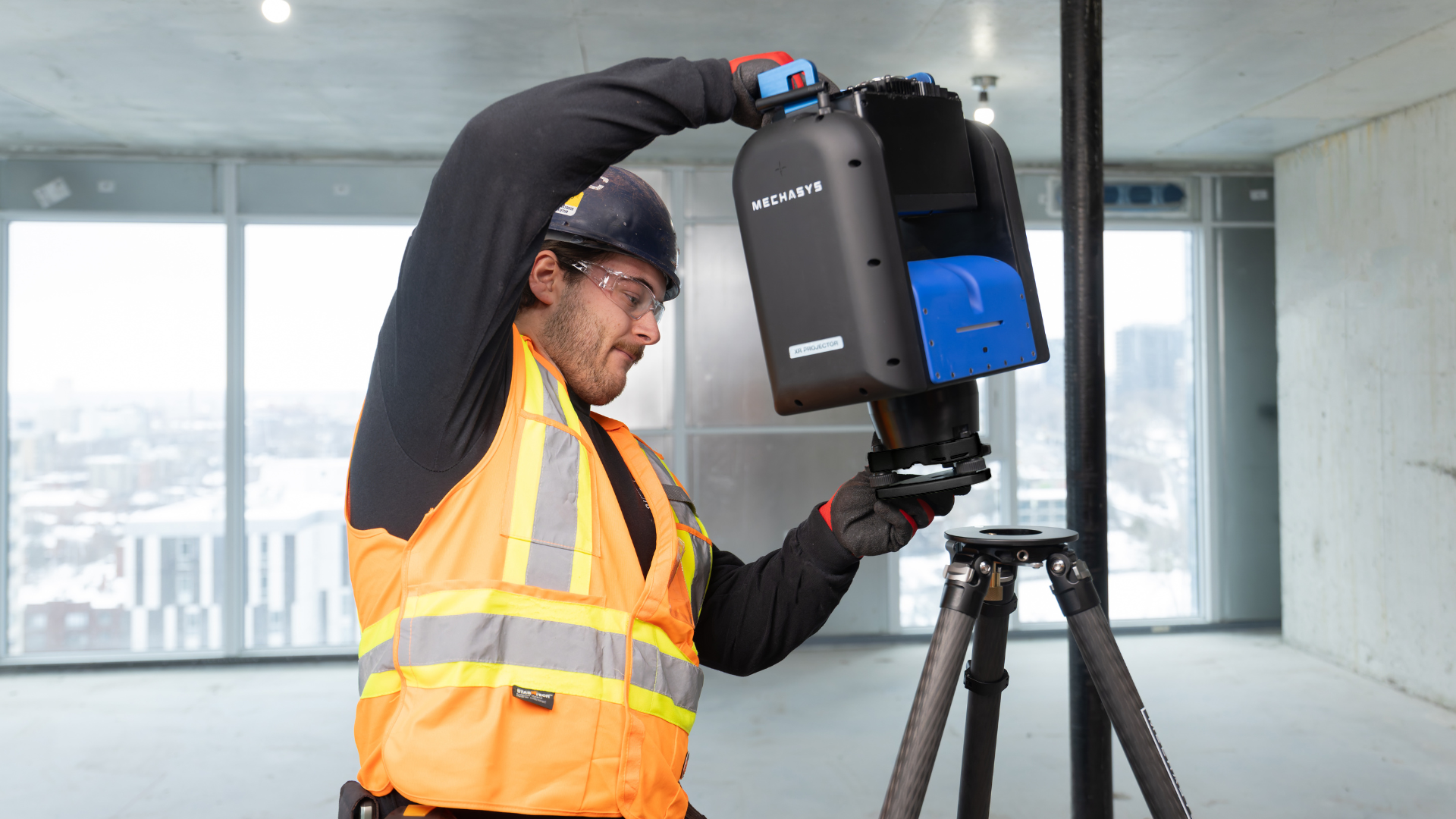

The Mechasys XR Projector operates up to 10x faster than traditional methods. A single operator sets up the standalone unit using control lines, control points, or site features. Once active:

• Multiple trade workers can install walls, soffits, and mechanical hangers simultaneously from a single setup.
• The system covers a 60-foot working range per setup, allowing fast coverage across large floor plates.
• Layer-based projection controls allow operators to isolate specific trades, such as drywall track, electrical boxes, or plumbing sleeves, straight from the CAD file.

SmartScan 3D Technology

Maintaining high precision across large slabs can be challenging due to floor pitch, concrete deflection, and surface variations.

Standard total stations measure distance directly to a prism target, but uneven floor slopes can introduce calculation errors if not constantly re-checked. And multi-line lasers lack the ability to adapt to slab contours automatically.

The Mechasys XR Projector delivers sub-1/8in accuracy across all projections by combining proprietary fiber optic green laser technology with onboard SmartScan 3D surface scanning.

1. Fiber Optic Green Laser: Uses a Class 3R 520nm green laser with a reduced dot size (approx. 2.1 mm x 2.1 mm at 8 meters) to deliver ultra-sharp visual lines under bright jobsite lighting.
2. SmartScan 3D Scanning: Prior to projecting, the system automatically performs a 3D scan of the target surface to identify slab sloped deviations and physical obstacles.
3. Real-Time Auto-Correction: The software recalculates laser paths to compensate for surface variance, ensuring projected lines maintain exact sub-1/8 inch precision across floors and overhead decks.

Handling Complex Architectural Curves and Overhead Ceilings

Laying out non-linear geometry, such as curved corridors, serpentine walls, or oval soffits, is one of the most labor-intensive tasks in commercial framing.

• With Point Layout Tools: Laying out a radius requires calculating numerous coordinate points along an arc, shooting each point individually, and using flexible bending guides to hand-draw curves on concrete.
• With the Mechasys XR Projector: The system renders true 2D and 3D arcs, splines, curves, and text annotations instantly from your design file. The entire curve projects onto the slab or ceiling in seconds, requiring zero manual geometric calculations.

Overhead ceiling work is equally straightforward. Rather than using plumb bobs or vertical lasers to transfer marks from the slab up to the deck, the XR Projector beams the design directly onto ceilings and elevated surfaces from a single instrument position. This makes it ideal for acoustical ceiling grids, soffit framing, and MEP hanger attachment points.

Comprehensive Feature Comparison Table

The table below details how the Mechasys XR Projector compares against standard Hilti layout tools across key performance metrics:

Why Contractors Choose the Mechasys XR Projector

While Hilti builds reliable layout tools, modern commercial projects require greater speed, reduced labor overhead, and seamless BIM integration.

The Mechasys XR Projector provides trade contractors with several distinct operational advantages:

• Lower Labor Overhead: Eliminates the need for two-person layout crews or dedicated total station operators. One person sets up the equipment and lays out, freeing up tradespeople to focus on installation.
• Real-Time Field Adjustments: If site conditions conflict with drawings, operators can modify CAD entities directly on the remote tablet. Field modifications save instantly and generate exportable reports for quality control documentation.
• Portability and Jobsite Durability: Weighing 24 lbs, the XR Projector includes a backpack-style hard case for easy transport up stairs and through congested sites. It features an IP54 rating for water and dust resistance, operating reliably in active construction environments.
• Rapid Adoption: A user-friendly visual interface allows field technicians to achieve full productivity after a short 1- to 3-hour onboarding session.
