Site Precision Partners with Mechasys to Bring Cutting-Edge Laser Projection Technology to Construction Sites
Site Precision is proud to announce a strategic partnership with Mechasys, an innovator in precision laser projection technology. As part of this collaboration, Site Precision will now offer the Mechasys XR Projector™ — a flagship-grade layout solution designed to transform the way construction professionals work on site. This partnership reflects our continued commitment to equipping our clients with tools that deliver measurable gains in productivity, accuracy, and operational efficiency.
A Partnership Built on Precision
At Site Precision, our mission has always been to source and supply solutions that meaningfully improve site operations. When we encountered the Mechasys XR Projector™, it was immediately clear that this was not a conventional layout tool. Mechasys has engineered a product that bridges the gap between digital design and physical construction — one that integrates seamlessly with BIM workflows while remaining accessible to crews on the ground.
This partnership allows Site Precision to extend our portfolio with a solution that is not only technically superior, but also practical for the day-to-day demands of modern construction sites. Together with Mechasys, we are positioned to help project teams reduce rework, compress timelines, and achieve a new standard of on-site accuracy.
Introducing the Mechasys XR Projector™

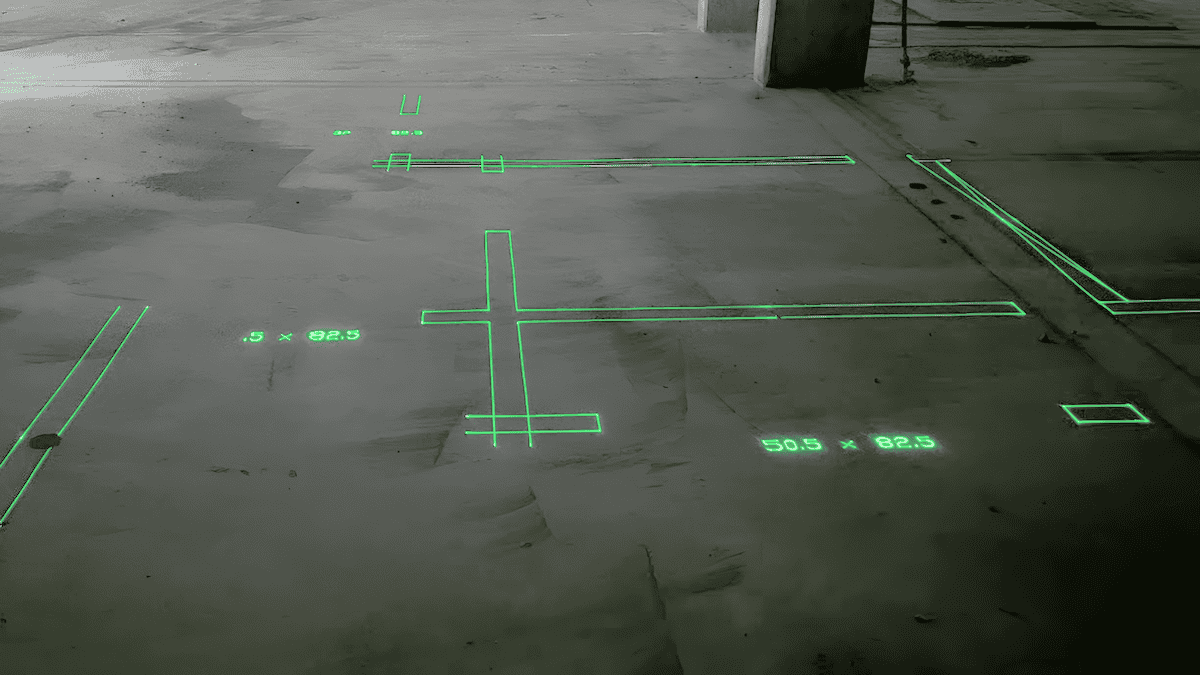

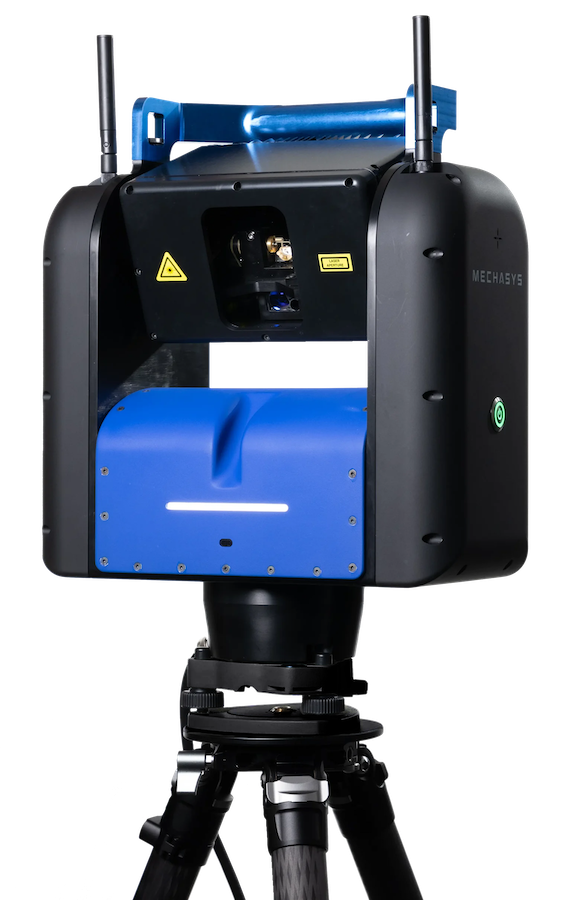

The Mechasys XR Projector™ is a compact, portable laser projection system purpose-built for professional layout operations. Whether working on floors, walls, or ceilings, the device projects your digital designs — points, lines, arcs, and text — directly onto the work surface with millimetric accuracy. The result is a faster, more reliable layout process that eliminates traditional marking and reduces the risk of costly errors.
Engineered to adapt to any job site environment, the XR Projector™ supports both 2D and 3D models and connects directly to existing CAD and BIM applications. Its layer-based projection system allows operators to isolate and display only the relevant elements of a design at any given time, streamlining the workflow and reducing on-site confusion.
Key Benefits for Construction Teams
The XR Projector™ delivers tangible, measurable advantages that impact both the speed and quality of site work:
- Up to 10x faster production rates. By projecting layout directly onto work surfaces, teams eliminate the time-consuming process of manual marking. What once took hours can now be accomplished in minutes.
- Millimeter-level accuracy. The XR Projector™ achieves millimeter-level precision in its projections, supporting 3mm accuracy (between 1/8in and 1/16in). This level of accuracy reduces rework and ensures that installations meet specifications every time.
- Easily adapt to existing site conditions. The XR Projector™ allows operators to adjust the layout projection to accommodate any conditions that are deviated from the BIM model. Plumbing pipe shows outside of wall? Simply shift the layout over. Any changes are documented as as-built information.

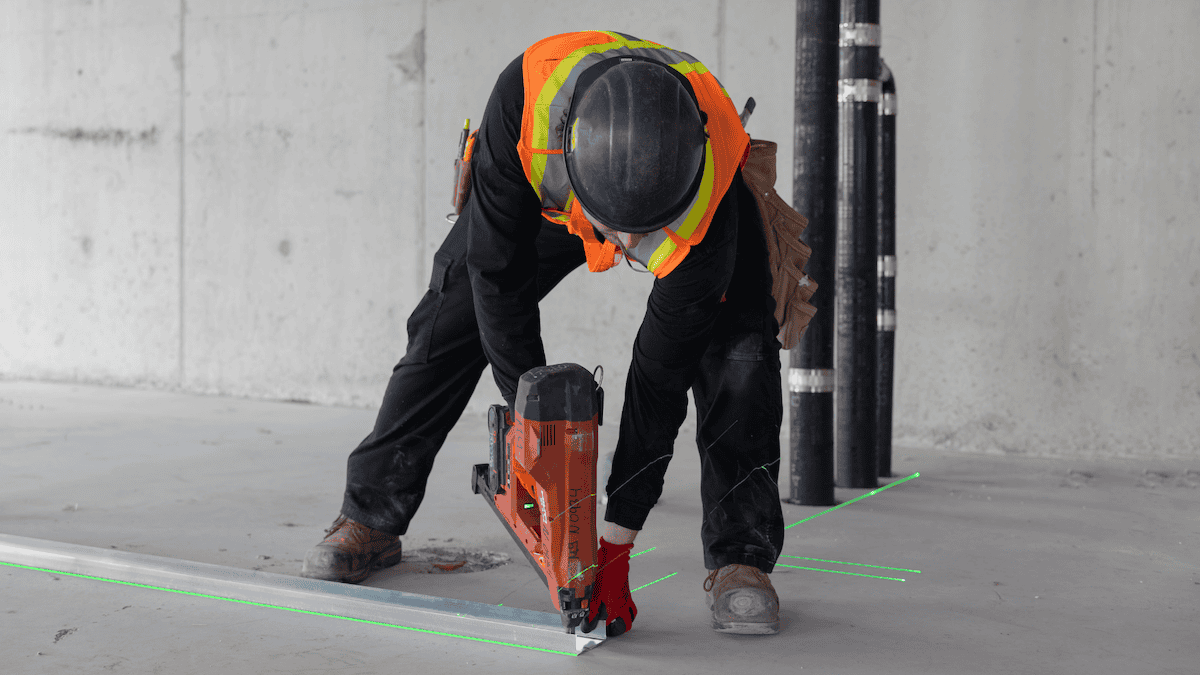

- No marking layout required. Traditional chalk lines, tape measures, and pencil markings are replaced by clean laser projection. This saves material costs and significantly reduces setup time between tasks.
- Rapid onboarding. The XR Projector™ features a simple graphical interface designed for ease of use. New operators can be fully trained and productive within a single day, minimizing disruption during rollout.
- Quantitative project data. The system’s web application captures and stores layout data throughout the project lifecycle, enabling teams to gather quantitative insights and maintain a reliable record of completed work.
Technical Specifications at a Glance
The XR Projector™ has been designed and certified to the highest industry standards. Key technical specifications include:
| Specification | Detail | |
|---|---|---|
| Projection Range | 1.3 m to 8.9 m (4.2 ft to 29 ft) | |
| Angular Field of View | 52.6° Azimuth x 52.6° Elevation | |
| Projection Geometry | 195.75 m² area (2,107sqft) | |
| Laser Class (Projection) | Class 3R / 520 nm (green, CW) | |
| Projection Accuracy | 3mm (Sub 1/8 in) | |
| EDM Range / Accuracy | 1 m to 50 m / ±1 mm | |
| Tilt Sensor Resolution | ≤0.001° (3.6 arcseconds) | |
| Connectivity | 4G/LTE, Wi-Fi (IEEE 802.11ac), Bluetooth 4.1 | |
| Weight | 11 kg | |
| Operating Temperature | 0°C to +50°C | |
| Safety | Proximity sensor with 60 Hz response; Class 2 EDM laser | |
| Certifications | UL/IEC 61010-1, FCC15, EN 55011:2016, IEC 60825-1, RoHS | |
Designed for the Field
Site conditions demand equipment that is robust, portable, and simple to deploy. The XR Projector™ weighs just 11 kg and is compact enough to be transported and set up by a single operator. Its 4G/LTE connectivity means it can be updated and managed remotely, while its integrated Wi-Fi and Bluetooth support flexible communication with the accompanying tablet controller and web application.
The system’s cutting-edge safety architecture includes a proximity sensor with a 60 Hz response time and a ±30° field of view, automatically suspending projection when personnel enter the detection zone. This ensures that the XR Projector™ meets the highest standards of site safety without requiring additional operator oversight.
Certified to CSA, UL, IEC, FCC, and RoHS standards, the XR Projector™ is fully compliant for use across North American and European job sites, giving project managers confidence in both the performance and regulatory standing of the equipment.
What This Means for Site Precision Clients
For existing and prospective Site Precision clients, this partnership means direct access to one of the most capable layout projection systems available on the market today. Our team will provide full support throughout the sales, deployment, and training process — ensuring that your crews are operational and confident with the XR Projector™ from day one.

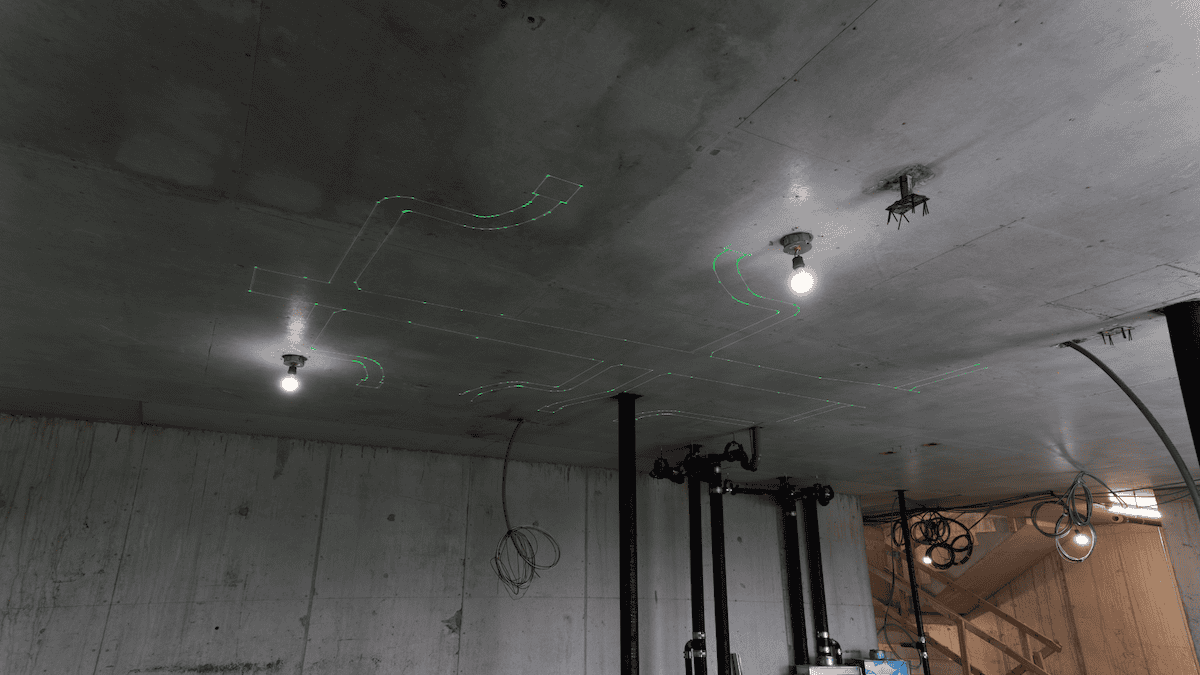

Whether you are working on interior walls and ceilings, complex MEP installations, or precision surveying assignments, the Mechasys XR Projector™ is engineered to meet your requirements. We invite you to contact the Site Precision team to arrange a demonstration or to learn more about how this technology can be integrated into your operations.
For more information about the Mechasys XR Projector™ or to arrange a product demonstration, please contact Site Precision.
