The High Cost of Traditional MEP Layout
For Mechanical, Electrical, and Plumbing (MEP) contractors, layout precision is everything. Installing overhead hangers, conduit runs, complex ductwork, and plumbing sleeves requires flawless execution. Relying on traditional manual layout methods such as paper blueprints, string lines, and tape measures invite compounding human errors.
A single misplaced hanger or misaligned sleeve can disrupt multiple trades, leading to expensive rework, wasted materials, and missed deadlines. Furthermore, manual layouts typically demand at least two crew members, tying up essential labor that could be deployed elsewhere. In a modern construction market where project margins are razor-thin, sticking to manual layout processes poses an unnecessary business risk.
How Robotic Total Stations Transform MEP Workflows
Robotic Total Stations (RTS) revolutionize the field by replacing manual measurements with an automated, high-precision digital workflow. Instead of manually cross-referencing paper prints, field crews can import exact DXF, DWG, or PDF design files directly from CAD and BIM software straight into the field controller.
Operating as a single-person solution, the RTS automatically tracks a glass prism mounted on a lightweight pole carried by the field operator. The instrument guides the user with real-time 3D positioning data, pinpointing the exact location for every hanger, pipe sleeve, or electrical run with precision down to 1/16th of an inch. By transforming layout into a fast, one-person job, contractors can accelerate layout speed by 4 to 5 times while preserving critical labor resources.
Choosing Your Instrument: Topcon LN Series vs. GT Series
At Site Precision, we offer tailored automated layout options to meet the distinct operational needs of different MEP crews:
1. Topcon LN-1000i 3D Layout Navigator
Specifically engineered to bridge the gap between traditional tools and complex surveying equipment, the LN-1000i is a game-changing 3D layout tool optimized for mechanical, electrical, p
lumbing, and interior building layouts. It features a simple, one-button self-leveling setup that requires zero prior surveying experience to learn or operate, plus an integrated 5MP camera with live-view targeting and a bright green laser pointer for fast, confident point-finding. With a robust 130-meter (426 ft) working radius and an expanded vertical grade range (+90° to -32°), it handles multi-story decking and tight interior spaces with ease. It integrates seamlessly with Topcon Digital Layout software and MAGNET field applications.

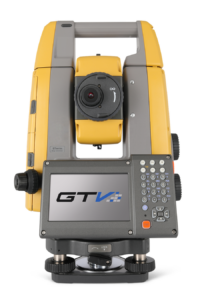

2. Topcon GT Series & GT-600V Series
For large-scale commercial or industrial environments where high performance and line-of-sight challenges are standard, the Topcon GT Series stands out. Available across multiple models (including the daily-driver GT-703 with 3″ angular accuracy and the flagship GT-1500 with 1 mm distance accuracy), the GT series utilizes advanced Brushless Direct Current (BLDC) motors that deliver smooth, ultra-silent turning speeds up to 200° per second.
Equipped with UltraTrac™ prism tracking technology, the instrument maintains a rock-solid lock in high-traffic jobsites. Furthermore, the GT series is Hybrid Positioning™ ready. When paired with a Topcon GNSS receiver, the system automatically switches to satellite tracking when line of sight is blocked by a truck or heavy machinery, ensuring zero operational downtime.
Key Technical Differences at a Glance
| Key Feature | Topcon LN-1000i Navigator | Topcon GT Series (GT-700/1500) |
|---|---|---|
| Primary Application | Interior Layout, MEP Hangers, Compact Sites | Heavy Commercial, Industrial, Civil Layout |
| Setup Method | One-Button Auto Self-Leveling | Professional Survey Control & Setup |
| Prism Range / Radius | Up to 130 m (426 ft) | 4,500 m to 5,000 m |
| Motor Technology | Standard Robotic Tracking | Brushless DC Motors (Up to 200°/sec) |
| Hybrid GNSS Ready | No | Yes (Seamless Optical/GNSS Switch) |
| Ruggedness Rating | IP65 Dust & Waterproof | IP65 + 5-Year Motor Warranty |
Maximizing ROI and Eliminating Rework on the Jobsite
Upgrading to a Topcon robotic solution from Site Precision is a direct revenue driver. By removing the prone-to-error manual entry step, layout points are established exactly as designed in the digital model. MEP contractors consistently find that the investment pays for itself within the first few projects simply through the massive reduction in rework and hours saved. Crews can double their daily layout point capacity without adding headcount, easily staying out ahead of concrete pours or framing crews.
Ready to see the Topcon layout in person?
Experience the blazing speed of the GT Series or the pure simplicity of the LN-1000i firsthand on your own jobsite.
Frequently Asked Questions
Yes. Because it allows a single operator to perform high-precision work that previously took two or three people, it allows smaller contractors to maximize their limited field manpower and take on larger projects confidently.
Absolutely. You can import your native DXF, DWG, or PDF files directly into the field layout software, eliminating manual text-entry mistakes and ensuring the field crew matches the design model perfectly.
How does Topcon’s tracking perform on busy, active jobsites?
Advanced models like the GT series utilize UltraTrac™ optical sensing alongside high-speed BLDC motors to maintain a tight lock on your prism. If line of sight is broken temporarily, features like the RC-5A remote re-acquisition can re-establish lock in seconds.
Final Verdict
For MEP contractors aiming to stay competitive, migrating to digital robotic layout is no longer optional—it is the modern standard for securing high-margin, error-free construction.
