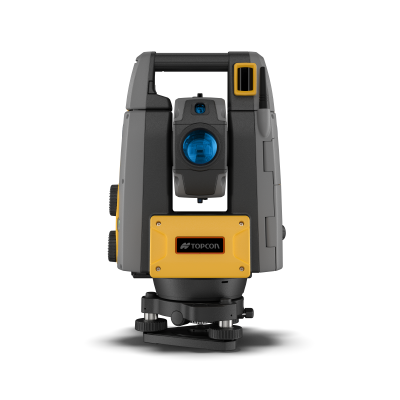

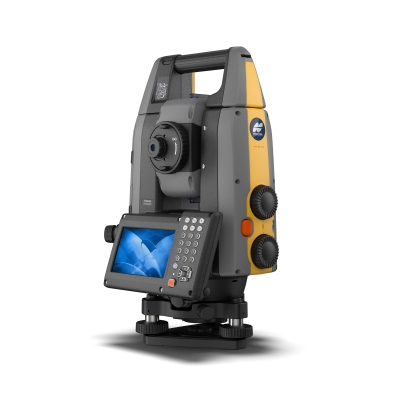

Topcon GT-703 Robotic Total Station

The Topcon GT-703 Robotic Total Station is the proven daily driver of the Topcon GT-700 series. Three-second angular accuracy covers the vast majority of construction layout work, from concrete foundations and structural steel to MEP rough-in and fire protection. Paired with 120-degree-per-second BLDC motors, 4,500-meter prism range, and full Hybrid Positioning compatibility, the GT-703 gives trade contractors a rugged, fast, single-operator instrument at a price point that makes robotic layout accessible for production crews.

Key Features

• Brushless Direct Current Motors: 120-degree-per-second rotation and 18-degree-per-second auto tracking. BLDC motors deliver smoother, quieter operation and outlast traditional servo designs.
• 3-Second Angular Accuracy: The right accuracy tier for day-to-day construction layout. Covers MEP, concrete, structural steel, masonry verification, and general building work.
• 4,500-Meter Prism Range: Extended range for large-site layout, parking lots, and long interior runs.
• 800-Meter Reflectorless EDM: Measure to surfaces without a prism. Perfect for as-built verification, elevator shafts, and hard-to-reach points.
• UltraTrac Prism Tracking: Rock-solid prism lock at ranges up to 800 meters, even in busy jobsite conditions.
• Hybrid Positioning Ready: Pair with a Topcon GNSS receiver to switch between robotic and GNSS measurement without changing software.
• RC-5A Remote Compatibility: Single-tap prism reacquisition from up to 300 meters away.
• LongLink Bluetooth: 600-meter communication range with RC-5A in open conditions.
• Rugged IP65 Rating: Fully dust- and waterproof. Operates from -20°C to 50°C. Built to take the abuse of daily jobsite use.

Built for Production Layout

Concrete contractors, MEP trades, structural steel crews, and fire protection teams do not need 1-second survey accuracy. They need an instrument that sets up fast, holds its calibration, and keeps a prism lock through the chaos of an active jobsite. The GT-703 is built for that. Same rugged IP65 housing, same BLDC motor technology, same Topcon field software, and the same 5-year motor warranty as the GT-1500 series. Switch between one-person robotic and two-person operation without changing software. Export directly to Topcon Digital Layout or Pocket3D for seamless layout workflows.

Technical Specifications

• Angular Accuracy: 3" (0.0010 gon / 0.015 mil)
• Angle Display: 1" / 5" selectable
• Prism Range: 1.3 to 4,500 m (14,760 ft)
• Reflectorless Range: 0.3 to 800 m (2,624 ft)
• Distance Accuracy (Fine): 2 mm + 2 ppm
• Measuring Time: Fine 0.9s / Rapid 0.6s / Tracking 0.4s
• Max Rotation Speed: 120°/sec
• Max Auto Tracking Speed: 18°/sec
• UltraTrac Tracking Range: 1.3 to 800 m
• Motor Type: Brushless Direct Current (BLDC)
• Operating System: Windows Embedded Compact 7
• Display: 4.3" TFT VWGA color touchscreen
• Communications: Bluetooth Class 1 (600 m with RC-5A), USB 2.0, RS-232C
• Battery Life: Approximately 4 hours per BDC72 battery
• Environmental: IP65 dust and water resistant, -20°C to 50°C operating temperature
• Weight: 5.9 kg (normal handle) / 6.0 kg (RC handle)

Standard Kit Includes:

• GT-703 Total Station
• 2x BDC72 rechargeable lithium-ion batteries
• CDC77 dual battery charger
• Rugged hard carrying case
• Lens cap and tool kit
• Calibration certificate

Industry-Leading Warranty:

• 3-Year Instrument Warranty
• 5-Year UltraSonic Motor Warranty

Common Questions About the GT-703

How accurate is the Topcon GT-703?
The GT-703 delivers 3 second angular accuracy, which covers the large majority of construction layout work including concrete foundations, structural steel, MEP rough-in, and fire protection. In practical terms that holds layout well within the tolerance most building trades work to.

What is the range of the Topcon GT-703?
The GT-703 has a 14,760 feet prism range, reflectorless measurement up 2,624 feet, and uses high speed brushless motors turning at 120 degrees per second for fast prism acquisition and tracking. On a typical building site, a single setup covers the working area comfortably.

What software works with the Topcon GT Series?
The GT Series runs with Topcon Digital Layout and MAGNET, and connects to common CAD and BIM workflows for importing design files and exporting as-built data. Site Precision helps configure the software side during implementation, so the workflow matches how your crew actually works.

What is the difference between Topcon Point Manager and Topcon Digital Layout?
Point Manager and Digital Layout serve different points in the workflow. Point Manager is optional and handles preparing and managing point data from CAD files, while Digital Layout is the field application crews use to stake and verify those points on site.

How does Topcon Digital Layout work with CAD and PDF files?
Digital Layout imports drawings and design files so crews can see the plan and stake directly from it on a field tablet, rather than working from a printed set and a tape measure.

Can one person operate the Topcon GT-703?
Yes. The GT-703 is a single operator instrument. It locks onto the prism and tracks the operator automatically, so one person carries the prism pole and controller and performs layout, stakeout, and verification without a second crew member.

What is the angular accuracy of the Topcon GT-703?
The GT-703 has 3-second (3") angular accuracy. At 100 feet, that translates to less than 1/16 inch of horizontal offset, suitable for construction layout including MEP, concrete, structural steel, and masonry.

What is the difference between the GT-703 and GT-702?
The GT-702 has 2-second angular accuracy and the GT-703 has 3-second. Both use the same GT-700 platform (120°/sec motors, 4,500 m prism range, 2 mm fine distance accuracy). Choose the GT-702 for boundary work or tighter tolerances. The GT-703 is the better value for mainstream construction layout.

What is the difference between the GT-703 and GT-705?
The GT-703 has 3-second angular accuracy and the GT-705 has 5-second. Both use the same GT-700 platform otherwise. The GT-703 covers most construction layout applications. The GT-705 is the entry point for crews where angular precision beyond 5 seconds is not required.

Not sure the GT-703 is the right instrument for your work? That happens often. Send us your project details and we will point you to the right tool, even if it is not this one.
