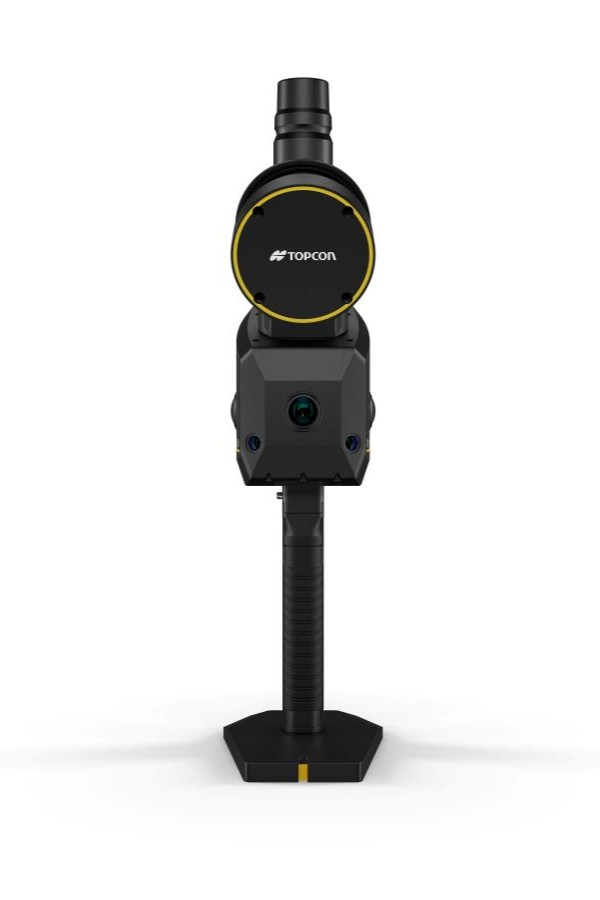

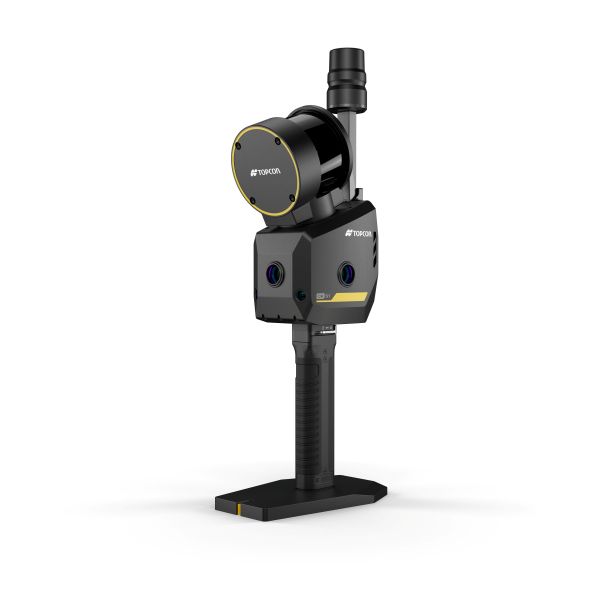

Topcon CR-S1 Portable SLAM 3D Scanner
Unmatched Speed and Flexibility
The Topcon CR-S1 is a high-performance handheld 3D scanning system built for today’s construction, surveying, and geospatial professionals. It combines advanced multi-sensor fusion (MLF-SLAM, VSLAM, and RTK-SLAM) with LiDAR, panoramic cameras, visual SLAM cameras, and integrated GNSS in a single portable unit. With a scan speed of 320,000 points per second and extended range, it delivers unmatched efficiency for topographic mapping, construction site surveys, progress monitoring, infrastructure assessment, tunnel/mining documentation, forestry analysis, and challenging GNSS-denied or featureless environments—all in a rugged, one-person design.
- Ultra-Fast Scanning: 320,000 points per second for dense, high-fidelity point cloud coverage while on the move.
- Range: Up to 120 m (394 ft) at 90% reflectivity.
- High precision: LiDAR accuracy 0.5 cm; absolute accuracy <3 cm; relative accuracy <1 cm; repeat accuracy <2 cm; RTK horizontal 0.8 cm + 1 ppm, vertical 1.5 cm + 1 ppm.
- Full coverage FOV: 280° horizontal × 360° vertical, enhanced by 3 × 12MP panoramic cameras for superior colorized imaging and 2 × 1.3MP VSLAM cameras.
- Manufacturer Warranty: Comes with a 2-year manufacturer warranty.
Tech Data Sheets
High-Performance Handheld SLAM Scanning with RTK—Dense Point Clouds, Extended Range, Real-Time Precision, Ready for Tomorrow
As a higher-performance evolution of the CR-S2, the CR-S1 offers increased point-cloud density, extended scanning range, and upgraded panoramic imaging in a single handheld unit. Its multi-sensor fusion (LiDAR + VSLAM + RTK-SLAM) provides stable, survey-grade accuracy even in featureless areas like beaches, forests, or urban canyons—delivering real-time colorized data with minimal setups for one-person efficiency.
Real-time data capture and preview is managed via the MAGNET Flow app (Android/iOS), with advanced SLAM processing performed through MAGNET Bridge. Data publishes seamlessly to Topcon Collage Web for visualization and collaboration, with export capabilities to standard formats (LAS, e57, etc.) for integration with BIM, CAD, GIS, or other preferred software.
Key Features
- Advanced Sensor Fusion: Integrates LiDAR, visual, IMU, and RTK data for stable positioning even where GNSS signals are weak.
- One-Person Operation: Lightweight 2.2 kg design with app-based control makes continuous scanning fast and efficient while walking the site.
- Real-Time Processing: Supports real-time colorization and processing to ensure actionable results in a single workflow.
- Extended Range Performance: Premium XT16 laser sensor provides a 120 m detection range for demanding large-scale projects.
- Flexible Mounting: Supports handheld use as well as optional backpack or pole mounting configurations.
- Rugged Site Durability: Features dust and splash-resistant IP64 housing capable of operating from -4°F to 104°F.
Technical Specifications
- Scan Rate: 320,000 pts/s
- LIDAR Accuracy: 0.5 cm (0.20 in.)
- RTK Accuracy: Horizontal: 0.8 cm + 1 ppm / Vertical: 1.5 cm + 1 ppm
- Detection Range: 120 m (393.70 ft)
- Field of View: 280° Horizontal / 360° Vertical
- Panoramic Cameras: 3 x 12MP
- VSLAM Cameras: 2 x 1.3MP
- Weight: 2.2 kg (4.85 lbs) with base, battery, and RTK module
- Storage: 512 GB SSD
- Battery Life: Approx. 2 hours per single 3450 mAh battery
- Environmental Rating: IP64
Common Questions About the GT-1200
What is the Topcon CR-S1 3D Scanner used for?
The Topcon CR-S1 is designed for high-precision mobile reality capture in construction, surveying, geospatial mapping, and infrastructure workflows. It’s used for topographic mapping, site surveys, tunnel and mining documentation, forestry analysis, utility mapping, and creating accurate digital twins in diverse or GNSS-challenged environments.
What makes the CR-S1 different from other 3D scanners?
As a higher-performance evolution of the CR-S2, the CR-S1 offers increased point-cloud density, extended scanning range, and upgraded panoramic imaging. Its multi-sensor fusion provides stable accuracy even in featureless areas like beaches or urban canyons.
How accurate is the CR-S1?
The CR-S1 delivers centimeter-level accuracy with relative accuracy <1 cm, absolute accuracy <3 cm, and RTK precision of 0.8 cm + 1 ppm horizontally (1.5 cm + 1 ppm vertically).
What are the differences between the CR-S1 models?
The CR-S1 is the premium handheld model in the series, featuring a 120 m range and 320,000 pts/s scan rate. It is ideal for demanding projects requiring higher density and coverage compared to the CR-S2.
What software does the CR-S1 work with?
It pairs directly with MAGNET Flow for on-site control and real-time viewing, and MAGNET Bridge for advanced SLAM processing. Data integrates with Topcon Collage Web for cloud collaboration.
How many people does it take to operate the CR-S1?
The scanner is designed for easy, one-person operation. Its lightweight 2.2 kg design and automatic real-time SLAM registration make scanning fast and efficient while walking the site.
How is data transferred and stored?
Data is stored internally on a 512 GB SSD and can be transferred via USB-C or wirelessly through the app. Users can instantly upload to Topcon’s Collage Web platform for remote access.
How long does the battery last?
Each rechargeable lithium battery provides roughly 2 hours of continuous scanning. Hot-swappable battery support enables extended operation without downtime.
Is the CR-S1 durable enough for job sites?
Definitely. The scanner features dust and splash-resistant IP64 housing and performs reliably in temperatures ranging from -4°F to 104°F.
Additional information
| Brand | Topcon |
|---|---|
| Model | CR-S1 |
