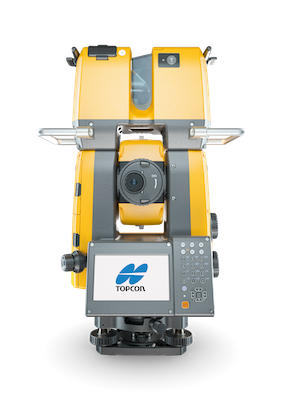

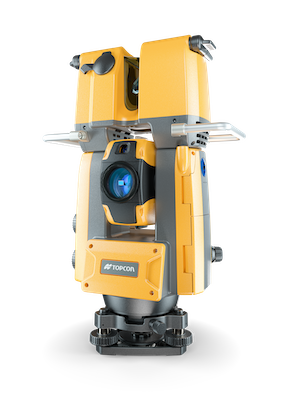

Topcon GTL-1203 Scanning Robotic Total Station
Hybrid Robotic Scanning & Layout in the Field
A scanning robotic total station built for today’s construction and survey professionals delivering unmatched efficiency for digital layout, as-built verification, BIM coordination, progress monitoring, and construction QA—all with one-person robotic operation.
- Up to 200,000 points per second
- Range of up to 230 feet (70 m at 90% reflectivity)
- Scanning noise down to 5 mm (0.2″) at 33 ft; surface accuracy to 3 mm at 33 ft; integrated total station with 3″ angular accuracy
- 360° horizontal × 270° vertical field of view
- Comes with a 2-year manufacturer warranty
- Export to ClearEdge3D Verity and Autodesk Navisworks for heat-map reports and clash detection
- IP54 dust- and splash-resistant housing
Starting at $54,589
Every job site is different, so we build each package around how your crew actually works. Tell us the work and we will spec the right configuration.
Tech Data Sheets
As an advanced solution for Topcon Terrestrial 3D Laser Scanning, the Topcon GTL-1203 Scanning Robotic Total Station integrates robotic total station layout with high-speed full-dome scanning in one instrument. It delivers instant geo-referenced point clouds, panoramic imaging at every setup, and direct BIM verification—cutting topo time in half and enabling 10x faster construction QA with a single setup.
Real-time layout and scanning is achieved using automatic geo-referenced registration with MAGNET Field on your field controller, with later processing and analysis via MAGNET Collage Site / Collage Office / Web. The system allows for seamless export to ClearEdge3D Verity and Autodesk Navisworks for BIM model comparison, heat-map reports, and clash detection.
Key Features

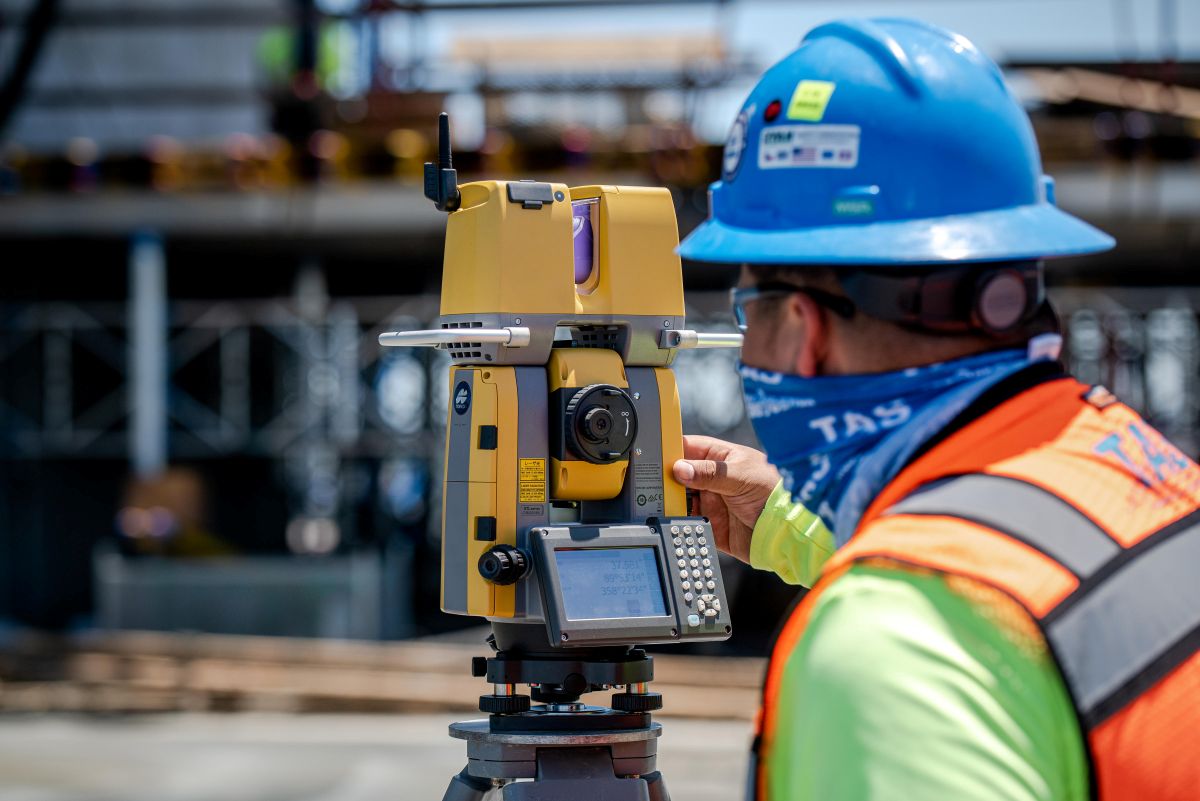

- One-Person Operation: Designed for easy, one-person robotic operation using proven tracking motors and on-board controls.
- Integrated Workflow: Pairs directly with MAGNET Field for on-site robotic control and layout.
- Advanced Imaging: Integrated 5 MP panoramic and tele cameras provide high-resolution colorized imaging for scan data.
- Wireless Connectivity: Transfer data via Wi-Fi (WLAN), Bluetooth, or upload scans wirelessly to the cloud via MAGNET Collage Web.
- Job Site Durability: Features a dust- and splash-resistant IP54 housing.
- Operational Range: Performs reliably in temperatures ranging from 14°F to 122°F (-10°C to 50°C).
Technical Specifications
- Scan Speed: 200,000 points per second
- Angular Accuracy: 3"
- Scanning Noise: 5 mm at 33 ft (10 m)
- Surface Accuracy: 3 mm at 33 ft (10 m)
- Scanning Range: Up to 230 ft (70 m)
- Field of View: 360° Horizontal x 270° Vertical
- Internal Storage: 1 GB (expandable via SD card/USB)
- Battery Life: Approx. 1.3 hours of continuous operation per battery
- Environmental Rating: IP54
Common Questions About the GTL-1203
What is the Topcon GTL-1203?
The GTL-1203 is a scanning robotic total station — a full robotic total station with high-speed, full-dome 3D laser scanning built in, so it handles layout and scanning from a single setup.
How is the GTL-1203 different from a regular robotic total station?
A standard robotic total station measures and stakes individual points. The GTL-1203 does that and adds full-dome laser scanning, letting you capture a dense as-built point cloud from the same instrument you're already using for layout.
How accurate is the GTL-1203?
1/8" accuracy at 33 ft (33 ft), with scanning noise of about 3/16" (0.2″) at the same distance.
What's the GTL-1203's scanning range and speed?
Up to 230 ft (230 ft at 90% reflectivity), scanning at 200,000 points per second.
What's the field of view?
360° horizontal by 270° vertical.
Can I use the GTL-1203 to verify layout after staking points?
Yes — that's one of its core strengths. Because it scans and stakes from the same setup, you can verify construction layouts in the field without bringing in a separate scanning instrument.
What software does the GTL-1203 work with?
Topcon Collage Site for real-time registration, MAGNET Field for controller integration, ClearEdge3D Verity for automated comparison reports, and it's compatible with Autodesk Navisworks for clash detection. Additionally, the GTL exports point cloud data that is compatible with the majority of CAD and BIM softwares.
Is the GTL-1203 as fast as a dedicated scanner like the CR-P1?
No — it scans at 200,000 points per second versus the CR-P1's 2,000,000. The trade-off is that the GTL-1203 also functions as a full robotic total station, so you're not carrying two instruments.
Who is the GTL-1203 best suited for?
Crews that already rely on a robotic total station for layout and want to add scanning capability without buying and learning a second, separate instrument.
What deliverables can I get from the GTL-1203?
Geo-referenced point clouds, direct BIM verification, digital twins, colorized point clouds via HDR/panoramic imaging, and heat-map comparison reports — the same deliverable set as Topcon's dedicated scanners.
Can the GTL-1203 replace both my total station and my scanner?
For many crews, yes — it's built to cover both roles. The main consideration is scan speed and range, which are lower than a dedicated high-speed scanner like the CR-P1, so very large or scan-heavy projects may still benefit from a dedicated unit.
How does the GTL-1203 fit into a typical construction layout workflow?
You can stake points as usual, then run a full-dome scan from that same setup to document as-built conditions or verify the layout against the design model — no swapping instruments or re-setting up.
Not sure the GTL-1203 is the right instrument for your work? That happens often. Send us your project details and we will point you to the right tool, even if it is not this one.
Additional information
| Brand | Topcon |
|---|---|
| Model | GTL-1200 |
